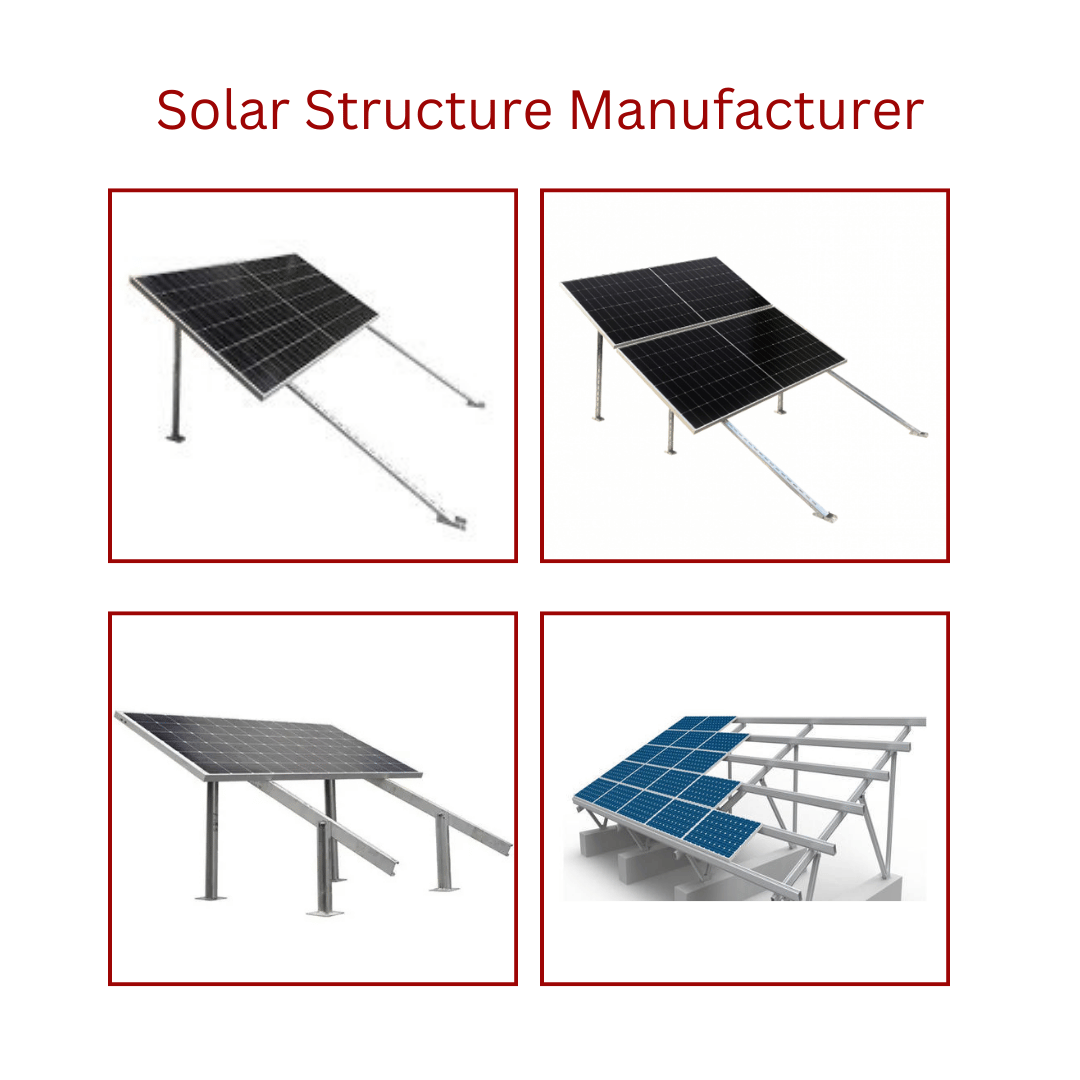

Solar Panel Structure and Stand Manufacturer
Solar structure plays a vital role in ensuring the stability and efficiency of solar energy systems by providing strong support for panels in all environments. Our high quality Solar pannal sturcture solutions are designed using galvanized and aluminum structure materials to ensure corrosion resistance, durability, and long term performance. As a reliable solar stand manufaurer, we offer a wide range of mounting systems suitable for residential, commercial, and industrial projects. We provide competitive Solar strtucrures price options without compromising on quality and strength. Our range includes multiple solar Structure types designed for rooftops, ground mounts, and customized installations. We also offer innovative solar sturtures designs that ensure maximum efficiency and proper angle alignment for sunlight exposure. Our strong solar sturure frame is engineered for heavy load capacity and harsh weather conditions. We provide customized solutions like solar pannal stand for two pannal for small and medium-scale setups. Our expert team ensures proper solar pannal stand fitting for secure and stable installations. We also offer competitive solar stand price in paksitan for bulk and project-based requirements. Our solar structures are easy to install, low maintenance, and highly durable for long-term use. We focus on precision manufacturing and quality standards to meet client requirements. Our galvanized and aluminum solar structures ensure rust resistance and enhanced life span. We deliver cost effective and reliable solar mounting systems across different industries. Our solutions are widely used in renewable energy projects and infrastructure developments. We are committed to providing high-performance solar structure systems with customer satisfaction. In addition to solar solutions, our products are also related to cable tray in paksitan for cable management, emt conduite pipe for electrical wiring protection, earthing matrial supplier for grounding solutions, lightning protection system for safety against electrical surges, and cable termination Supplier for secure electrical connections.
Solar Panel Structure – Complete Guide for Pakistan (L2, L3, L4, L5, U-Type & C-Type Mounting Structures)
A solar panel structure is the backbone of every solar power system. It keeps your solar panels safe, stable, and positioned at the correct angle to generate maximum electricity. Whether you are installing a 3kW home system, a 50kW commercial system, or a 1MW industrial solar project, choosing the right mounting structure is extremely important for durability, energy output, and safety.
In Pakistan, the most commonly used and reliable structures are:
✔ L2, L3, L4, L5 Structures
✔ U-Type Structure
✔ C-Type Structure
Below is a detailed guide explaining each type, their uses, advantages, technical details, and installation benefits.
What Is a Solar Panel Structure?
A solar panel structure is a specially designed steel or aluminum frame that holds solar panels securely at the optimum tilt. It ensures:
Maximum sunlight exposure
Long-term durability against wind, rain, and heat
Proper panel alignment for high efficiency
Safe mounting on rooftops, grounds, and industrial sheds
A good structure reduces damage, increases panel lifespan, and improves overall system performance.
Types of Solar Panel Structures
L2 Solar Structure (Rooftop Standard Mounting)
Best for: Homes, shops, small buildings, RCC roofs
Features & Benefits (Expanded Description)
✔ Strong Welded Frame
L2 structures are built from MS steel or GI steel, welded with precision to withstand long-term load. Welding eliminates weak joints, ensuring the frame can handle panel weight and wind pressure for years.
✔ Perfect Angle for Pakistan Sunlight
Most L2 structures are set at 25° to 30° tilt, which is the ideal angle for Lahore, Karachi, Islamabad, Faisalabad and surrounding regions. This angle ensures year-round maximum solar absorption.
✔ Anti-Corrosion Coating
L2 structures are always hot-dip galvanized, which creates a protective zinc layer that prevents rust even in:
humid areas
coastal environments
high-temperature regions
This increases lifespan to 15–20 years.

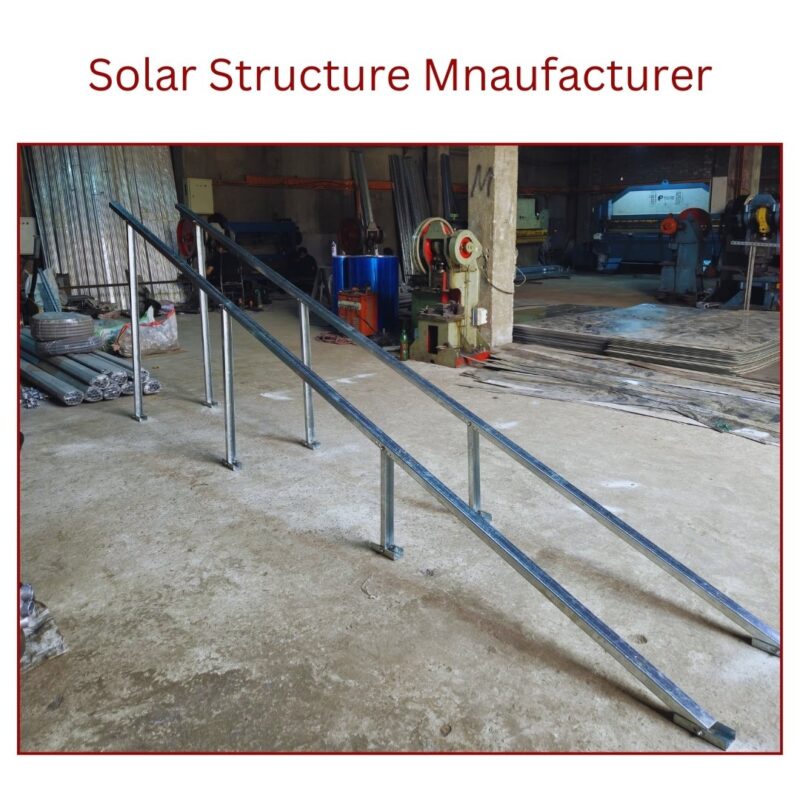

L3 & L4 Solar Structures
Elevated Residential & Industrial Mounting Frame
The L3 structure is perfect for residential rooftops and small commercial spaces where additional height is needed. With elevations of 4–8 feet, L3 frames allow walking space underneath, making room for water tanks, storage, washing areas, or improved ventilation. This elevation also enhances airflow beneath the panels, reducing heat buildup and increasing energy efficiency. Heavy-duty pillars and reinforced cross bracing provide strong wind resistance, ensuring panel stability during storms.
The L4 structure is designed for industrial rooftops, warehouses, and factories, supporting long rows of heavier solar panels. Built from thick galvanized steel box pipes, L4 frames can withstand industrial vibrations and heavy loads. Custom tilt angles are possible to maximize solar production depending on roof orientation and local climate. With proper galvanization, L4 structures are a long-lasting solution, providing 20+ years of maintenance-free durability.
Together, L3 and L4 structures provide a flexible, high-strength mounting solution suitable for both elevated residential projects and heavy-duty industrial installations, combining practicality, stability, and efficiency in one comprehensive solar mounting system.
Get a Quote
sales@epepk.com
Need more help?
Need help? Our team is here to assist you with cable tray selection, pricing, customization, and technical support.
0300-9444-974
0300-9444-907
L5 Solar Structure (Commercial / Large-Scale Projects)
Best for 100kW–1MW commercial systems, solar farms, open-land installations
Features & Benefits (Expanded Description)
Long Spanning Capability
L5 frames support large solar arrays across open lands and large roofs. Ideal for corporate buildings, schools, and industries.
Ground Mount Compatibility
These structures are suitable for:
concrete foundation
earth screw foundation
ballast-type foundations
Extremely High Load Bearing
L5 structures can handle:
high wind speed
heavy panels
long module strings
severe weather conditions
100% Customized Project Design
Engineers can customize the height, angle, spacing, and length based on project requirements.
U-Type Solar Panel Structure (New-Generation Durable Mount)
Best for: Residential, commercial & industrial projects requiring high durability and anti-corrosion performance
Features & Benefits (Detailed Description)
U-Shaped Channels for Extra Rigidity
The U-shaped design provides stronger load-bearing capacity.
Panels stay firmly locked in place, reducing bending or twisting caused by wind pressure.
Ideal for Harsh Weather Conditions
Perfect for areas with:
high wind
dust storms
heavy rainfall
The structure does not deform easily because of the U-channel support system.
Quick Installation System
U-Type systems use pre-drilled holes, universal clamps, and ready-made channels, reducing installation time by almost 40%.
Superior Corrosion Resistance
U-type is often fully galvanized from inside and outside, preventing moisture buildup and rust formation.
C-Type Solar Panel Structure (Commercial-Grade Robust Mount)
Best for: Factories, commercial buildings, large arrays, and heavy panels
Features & Benefits (Expanded Description)
C-Shaped High-Strength Steel Channels
The C-type frame provides excellent rigidity and load support.
It is more robust than U-type for larger systems and long panel rows.
Perfect for Long Span & Heavy Panels
C-type structures distribute weight efficiently, making them ideal for:
550W–650W large solar panels
long module strings
multi-row industrial layouts
Modular Design
Easy to assemble with bolted connections and adjustable clamps.
Great for large commercial projects where fast installation is required.
Long-Term Performance
C-type structures are built for 20–25 years of durability when hot-dip galvanized.
Why High-Quality Structure Matters?
A strong structure ensures: higher energy efficiency, reduced maintenance, longer panel lifespan, maximum safety, stable performance in all weather conditions. Poor quality structures often fail in storms, causing expensive damage.
Technical Specifications
| Feature | Description |
|---|---|
| Material | MS Steel, GI Steel |
| Coating | Hot-Dip Galvanized (HDG), Zinc Coated |
| Tilt Angle | 10°–35° depending on project |
| Wind Resistance | Up to 180 km/h (type-dependent) |
| Foundation Style | Roof bolts, ballast, ground screws |
| Panel Compatibility | 450W–650W (all major brands) |
Applications of Solar Panel Structures
Homes (3kW–20kW)
Shops & Small Businesses
Factories & Warehouses
Commercial Buildings
Open Land & Solar Farms
Agricultural Tubewell Solar Systems
A good solar panel structure increases energy production, ensures stability, and protects your investment.
L2, L3, L4, L5, U-Type, and C-Type structures each serve different needs, from homes to factories to large solar farms.
